Auto Trans Trike Kits

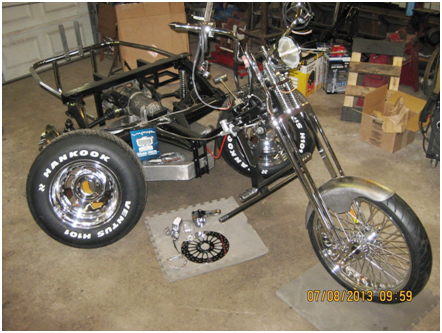

KIT A1: THIS IS OUR DELUXE TYPE 3 FRAME SET-UP,
EVERYTHING YOU NEED TO START YOUR TRIKE.

The frames neck is made out of 2” by 2” by ¼” heavy wall square tubing, lined up with a laser, and then welded at a 37 degree rake to the suspension, has 1” stem bearings, dust covers, and a neck stop that is included.

The transmission mount and rear body mount are made of 3” by 3” by ¼” angle, 1-1/2” by 11 gauge square tubing, with 5/16” plate to bolt the 10mm bolts to the side of the transmission. Two 10mm bolts & spacers, with two 2” by ¼” angle clips are used to mount it to the shock towers. Two extra 1-1/2” square tubes are welded to the 5/16” mounting plates to secure the belly 14 gallon gas tank and the chrome motor cage. The transmission front is mounted to the suspension with a rigid fabricated front transmission mount along with 12 mm bolts.

AI-KIT:

The A1-KIT comes with my “Full Automatic Transmission Kit” which includes, a rebuild & road tested VW 003 transmission, rebuilt torque converter, flex plate & 3 mounting bolts, gland nut & washer, type 3 suspension that is sandblasted & finished painted, a set of RT. & LF. new CV joints & axels, a set of new coil over shocks, a set of new rear wheel bearings & spacers, a VW shifter, and a used starter.

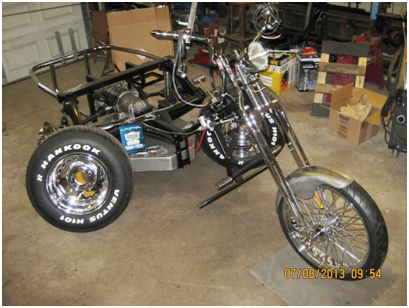

Also it comes with my neck, bearings, & dust covers, welded to the type 3 suspension, auto trans mount & rear body mount, adjustable “T-Bar”, brake & clutch pedals welded together, brake & clutch axel & yoke, brake master cylinder & linkage, foot pegs, chrome motor cage & body support brackets, battery box, 14 gallon belly gas tank, sending unit & mounting brackets, auto shifter brackets & shift cable. Chevy 5 whole disc brakes & braded brake line kit. The chrome Springer front end is a 6” over DNA, with 4” risers, fender tabs, and chopper head light & bracket, steel wide glide front fender. The front wheel is chrome DNA 60 spoke 21” x 3-1/2” with an Avon 90/90-21” Road Rider front tire. The chrome handle bars are 1” with hand grips, Harley chrome switch housings & chrome switches, a custom 120” throttle cable, and a Trail Tech Vapor multi-function speedometer & mounting bracket for the CV speed sensor. The chrome Chevy 5 whole rear wheels are 15” x 8” with new 275-60-15 tires. This kit also includes a chrome DNA front brake caliper, super spoke front brake rotor & mounting bolts, a handle bar mounted front brake master cylinder, braded brake line & fittings.

The cost of the A1-KIT is only $9068.00 plus tax for Missouri residence or plus P & H & shipping to your location.

A2-KIT:

The A2-KIT comes with my “Full Automatic Transmission Kit” which includes, a rebuild & road tested VW 003 transmission, rebuilt torque converter, flex plate & 3 mounting bolts, gland nut & washer, type 3 suspension that is sandblasted & finished painted, a set of RT. & LF. new CV joints & axels, a set of new coil over shocks, a set of new rear wheel bearings & spacers, a VW shifter, and a used starter.

The cost of the A2-KIT is only $8404.00 plus tax for Missouri residence or plus P & H & shipping to your location.

A3-KIT:

The A3-KIT comes with my “Full Automatic Transmission Kit” which includes, a rebuild & road tested VW 003 transmission, rebuilt torque converter, flex plate & 3 mounting bolts, gland nut & washer, type 3 suspension that is sandblasted & finished painted, a set of RT. & LF. new CV joints & axels, a set of new coil over shocks, a set of new rear wheel bearings & spacers, a VW shifter, and a used starter.

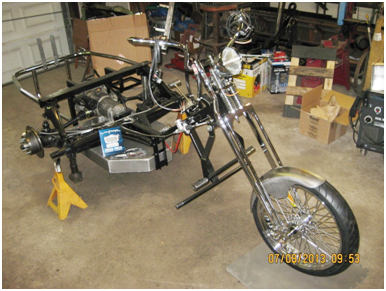

Also it comes with my neck, bearings, & dust covers, welded to the type 3 suspension, auto trans mount & rear body mount, adjustable “T-Bar”, brake & clutch pedals welded together, brake & clutch axel & yoke, brake master cylinder & linkage, foot pegs, chrome motor cage & body support brackets, battery box, 14 gallon belly gas tank, sending unit & mounting brackets, auto shifter brackets & shift cable.  Chevy 5 whole disc brakes & braded brake line kit.  The chrome Springer front end is a 6” over DNA, with 4” risers, fender tabs, and chopper head light & bracket, steel wide glide front fender.  The front wheel is chrome DNA 60 spoke 21” x 3-1/2” with an Avon 90/90-21” Road Rider front tire.  The chrome handle bars are 1” with hand grips, Harley chrome switch housings & chrome switches, a custom 120” throttle cable, and a Trail Tech Vapor multi-function speedometer & mounting bracket for the CV speed sensor.

The cost of the A3-KIT is only $7809.00 plus tax for Missouri residence or plus P & H & shipping to your location.

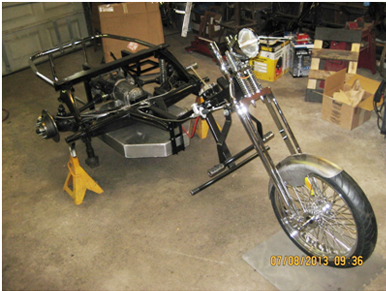

A4-KIT:

The A4-KIT comes with my “Full Automatic Transmission Kit” which includes, a rebuild & road tested VW 003 transmission, rebuilt torque converter, flex plate & 3 mounting bolts, gland nut & washer, type 3 suspension that is sandblasted & finished painted, a set of RT. & LF. new CV joints & axels, a set of new coil over shocks, a set of new rear wheel bearings & spacers, a VW shifter, and a used starter.

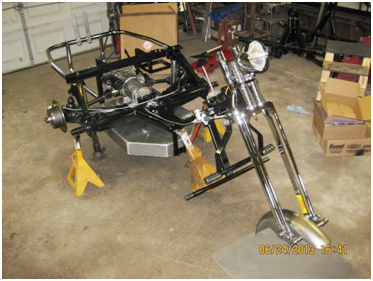

Also it comes with my neck, bearings, & dust covers, welded to the type 3 suspension, auto trans mount & rear body mount, adjustable “T-Bar”, brake & clutch pedals welded together, brake & clutch axel & yoke, brake master cylinder & linkage, foot pegs, chrome motor cage & body support brackets, battery box, 14 gallon belly gas tank, sending unit & mounting brackets, auto shifter brackets & shift cable.  Chevy 5 whole disc brakes & braded brake line kit.  The chrome Springer front end is a 6” over DNA, with 4” risers, fender tabs, and chopper head light & bracket, steel wide glide front fender.  The front wheel is chrome DNA 60 spoke 21” x 3-1/2” with an Avon 90/90-21” Road Rider front tire.

The cost of the A4-KIT is only $7153.00 plus tax for Missouri residence or plus P & H & shipping to your location.

A5-KIT:

The A5-KIT comes with my “Full Automatic Transmission Kit” which includes, a rebuild & road tested VW 003 transmission, rebuilt torque converter, flex plate & 3 mounting bolts, gland nut & washer, type 3 suspension that is sandblasted & finished painted, a set of RT. & LF. new CV joints & axels, a set of new coil over shocks, a set of new rear wheel bearings & spacers, a VW shifter, and a used starter.

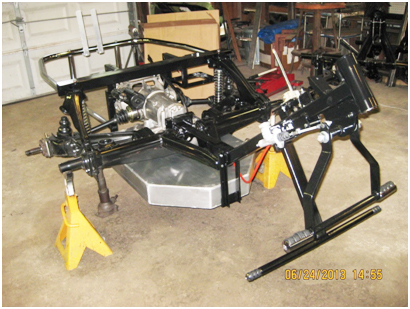

Also it comes with my neck, bearings, & dust covers, welded to the type 3 suspension, auto trans mount & rear body mount, adjustable “T-Bar”, brake & clutch pedals welded together, brake & clutch axel & yoke, brake master cylinder & linkage, foot pegs, chrome motor cage & body support brackets, battery box, 14 gallon belly gas tank, sending unit & mounting brackets, auto shifter brackets & shift cable.  Chevy 5 whole disc brakes & braded brake line kit.  The chrome Springer front end is a 6” over DNA, with 4” risers, fender tabs, and chopper head light & bracket, steel wide glide front fender.

The cost of the A5-KIT is only $6448.00 plus tax for Missouri residence or plus P & H & shipping to your location.

A6-KIT:

The A6-KIT comes with my “Full Automatic Transmission Kit” which includes, a rebuild & road tested VW 003 transmission, rebuilt torque converter, flex plate & 3 mounting bolts, gland nut & washer, type 3 suspension that is sandblasted & finished painted, a set of RT. & LF. new CV joints & axels, a set of new coil over shocks, a set of new rear wheel bearings & spacers, a VW shifter, and a used starter.

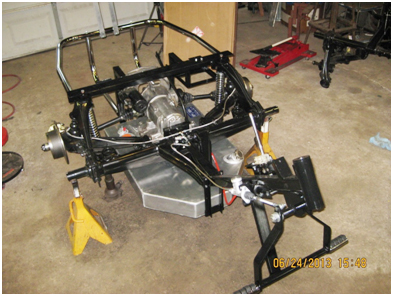

     Also it comes with my neck, bearings, & dust covers, welded to the type 3 suspension, auto trans mount & rear body mount, adjustable “T-Bar”, brake & clutch pedals welded together, brake & clutch axel & yoke, brake master cylinder & linkage, foot pegs, chrome motor cage & body support brackets, battery box, 14 gallon belly gas tank, sending unit & mounting brackets, auto shifter brackets & shift cable.  Chevy 5 whole disc brakes & braded brake line kit.

The cost of the A6-KIT is only $5661.00 plus tax for Missouri residence or plus P & H & shipping to your location.

A7-KIT:

The A7-KIT comes with my “Full Automatic Transmission Kit” which includes, a rebuild & road tested VW 003 transmission, rebuilt torque converter, flex plate & 3 mounting bolts, gland nut & washer, type 3 suspension that is sandblasted & finished painted, a set of RT. & LF. new CV joints & axels, a set of new coil over shocks, a set of new rear wheel bearings & spacers, a VW shifter, and a used starter.


     Also it comes with my neck, bearings, & dust covers, welded to the type 3 suspension, auto trans mount & rear body mount, adjustable “T-Bar”, brake & clutch pedals welded together, brake & clutch axel & yoke, brake master cylinder & linkage, foot pegs, chrome motor cage & body support brackets, battery box, 14 gallon belly gas tank, sending unit & mounting brackets, auto shifter brackets & shift cable.

The cost of the A7-KIT is only $5127.00 plus tax for Missouri residence or plus P & H & shipping to your location.

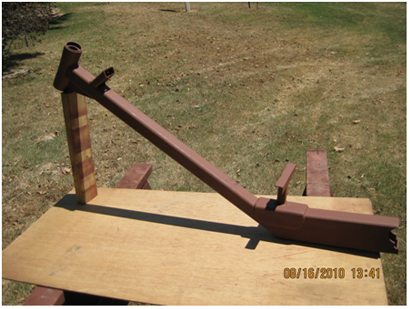

Steering Neck For A Type 3 Suspension

This neck is made for a Possum Pride Body ready to weld to your type 3 VW IRS suspension. The neck frame is made out of 2” by 2” by ¼” tubing. The part that is welded to the type 3 IRS suspension is made out of 2” by 4” by ¼” tubing.  The steering neck is welded on a 37-degree rake and comes with 1” bearings & dust cap. This part is primer painted.

The cost of this neck is $518.00 plus tax for Missouri residence. P & H & shipping cost to most places is $50.00.

New Rigid Front Transmission Mount to Suspension.

The new transmission mount replacement is made of ¼” material and comes with the metric mounting bolts & nuts for the suspension.

The cost of this item $75.00 plus tax in Ava.  P & H & Shipping to most places is $18.00.

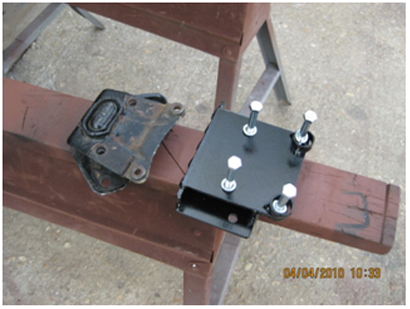

The photo above is the suspension side.

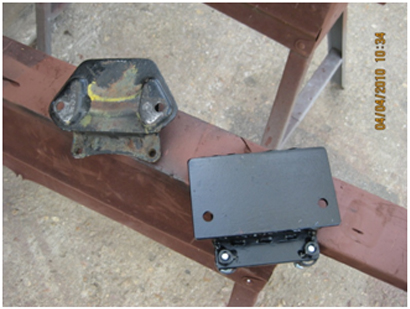

The original front transmission mount.
